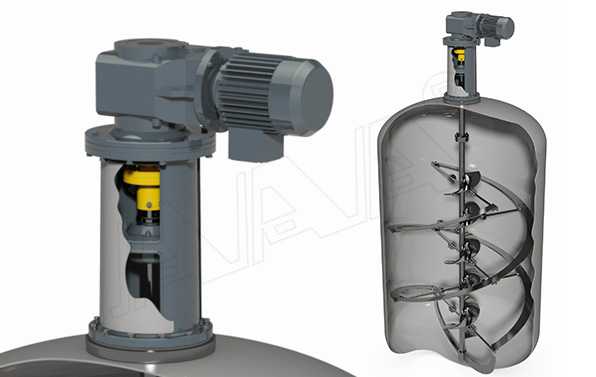

GMR Series Right-Angle Mixers/Agitators
GMR Series Right-Angle Mixers/Agitators
Size: To 1100kW(1500HP)
Speeds: 1~350rpm
Torque: Over 100000N.m
Characteristics & Features:
GMR series is right angel gear drive mixers. It has been proved in practically every process from critical reactor systems to routine mixing operations. The superb design and high manufacturing standards assure long service life and low maintenance.
¡ñ Precision designed gears provides compact structure and extra strength for longer life.
¡ñ Dry-well structure on output shaft which provides safety against oil leakage.
¡ñ Robust bearings lives in excess of 100,000 hours.
¡ñ Strong pedestal bearing design can isolate the shock to gearbox and ensure gearbox longer life.
¡ñ Various seal types can be adopted to meet different requirements.
Applications:
The GMR series mixers/agitators can be used for most small to the largest size applications, from critical to routine.
Chemical--------
Water and waste water treatment---------
Flue Gas Desulfurization (FGD) --------
Petrochemical ---------------
Mineral process------
Send Inquriy

Agitator datasheetDownload
Necessary Information for Agitator Design:
1.1 Mounting type : Top entry/Side entry/Bottom entry
1.2 Location : Indoor/Outdoor
2.1 Vessel diameter(mm)
2.2 Vessel height(mm)
2.3 Shape of vessel heads(top/bottom)
2.4 Operating pressure(barg)
2.5 Operating temperature(℃)
2.6 Fluid density(kg/m3)
2.7 Fluid viscosity(cP)
2.8 Mixing purpose
3.1 Impeller material
3.2 Shaft material
3.3 Mounting flange material
4.1 Explosion Protection
4.2 Variable-frequency Drive : Yes/No
