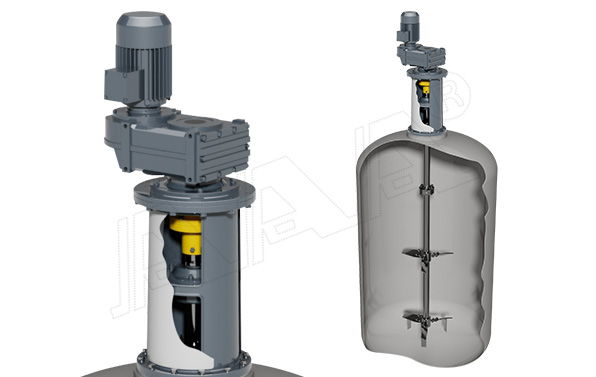

GMP Series Parallel Shaft Mixers/Agitators
GMP Series Parallel Shaft Mixers/Agitators
Size: To 315kW(420HP)
Speeds: 1~400rpm
Torque: Over 20000N.m
Characteristics & Features:
GMP series are the efficient, parallel shaft gear drive mixers supply maximum power for application up to420HP. By offering single, double or triple reduction, the speed can range 1 to 400rpm. These series are easily customized by enhancing options to satisfy even the most unique process requirements.
The main features:
¡ñ Precision designed gears provides compact structure and extra strength for longer life.
¡ñ Dry-well structure on output shaft which provides safety against oil leakage.
¡ñ Robust bearings lives in excess of 100,000 hours.
¡ñ Motor adapter ensures fast, positive motor alignment and quick replacement.
¡ñ Strong pedestal bearing design can isolate the shock to gearbox and ensure gearbox longer life.
¡ñ Various seal types can be adopted to meet different requirements.
Applications:
The GMP series mixers/agitators can be used for most small to middle size applications, from critical to routine.
Chemical--------
Water and waste water treatment---------
Flue Gas Desulfurization (FGD) --------
Petrochemical ---------------
Mineral process------
Send Inquriy

Agitator datasheetDownload
Necessary Information for Agitator Design:
1.1 Mounting type : Top entry/Side entry/Bottom entry
1.2 Location : Indoor/Outdoor
2.1 Vessel diameter(mm)
2.2 Vessel height(mm)
2.3 Shape of vessel heads(top/bottom)
2.4 Operating pressure(barg)
2.5 Operating temperature(℃)
2.6 Fluid density(kg/m3)
2.7 Fluid viscosity(cP)
2.8 Mixing purpose
3.1 Impeller material
3.2 Shaft material
3.3 Mounting flange material
4.1 Explosion Protection
4.2 Variable-frequency Drive : Yes/No
